5 CORE Universal TILT LED HD Projector Ceiling Mount Wall Bracket Holder White Rectangle White CM 4365

5 Core Universal Adjustable Wall Ceiling Projector Mount Bracket

This multi-functional projector mount is suitable for any installation. Made from solid steel for durability with minimal vibration compared to aluminum models and is suitable for ceilings and walls. Find the best projection angle with pitch, roll, height adjustment (from the ceiling), and extension from the wall. The quick-release connector allows the projector to be installed quickly and released for maintenance without re-alignment.

Main Features :

• Quick-release design allows the projector to be installed quickly and released for maintenance
• Features cable management to conceal HDMI, audio, video cables
• Fits most projector brands (mounting holes on projector Max 14.2 inch)
• A smaller contact area with a projector helps ventilation and Heat dissipation
• Drop down projector mount not place a projector at a table level avoid shadow distractions
• Artistic structure with durable powder-coated finish, rustproof and practicality.

Specifications

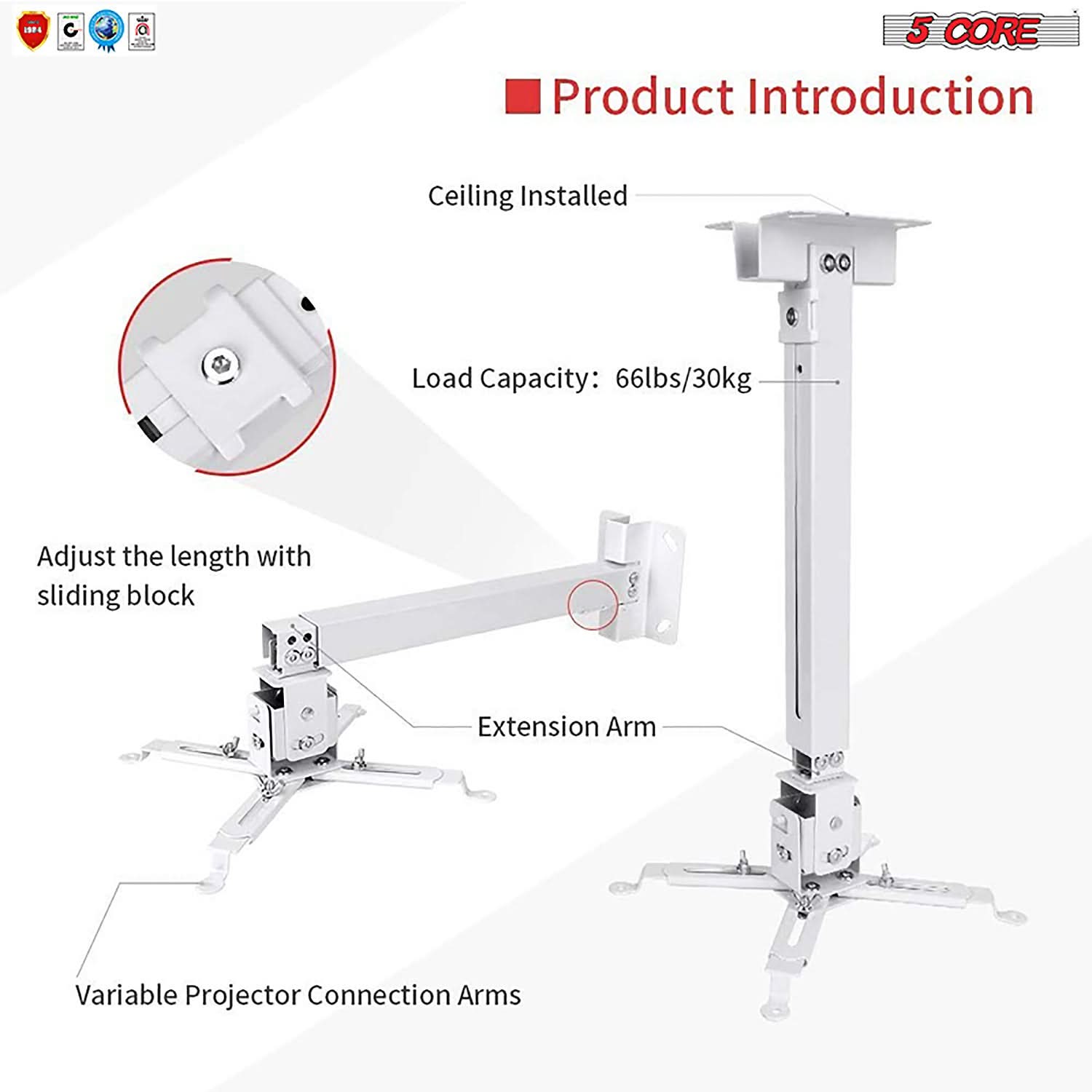

• Heavy-duty: Load Capacity 66 lbs

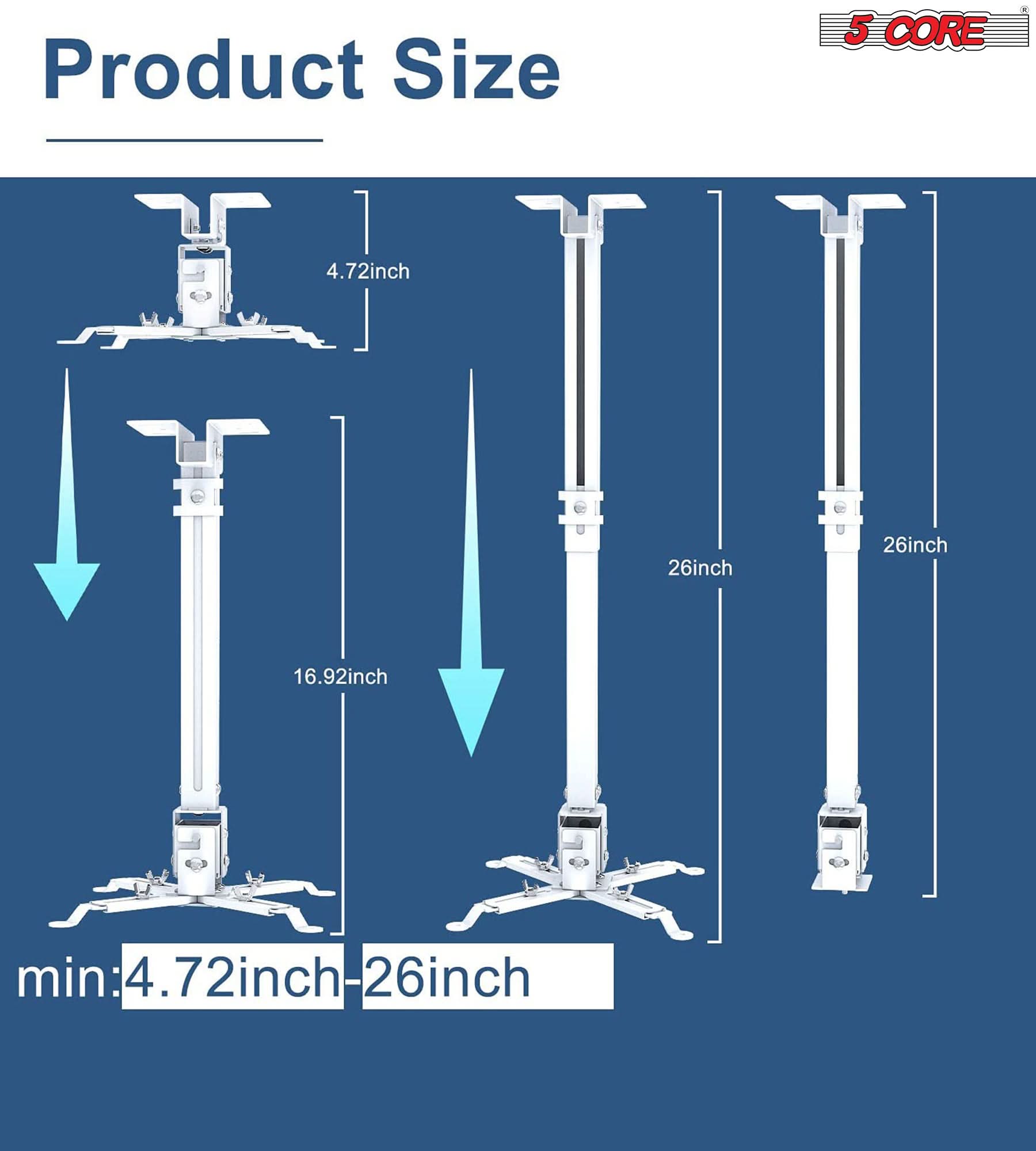

• Height Adjustment (ceiling): 5" - 25.6"
• Wall Extension: 16.9" - 24"
• perfect image quality: 15-degree tilt
• optimal viewing angles: 22.5-degree swivel
• Fits projectors with Max mounting holes: 14.2 inch.
• Package includes a projector ceiling mount, all necessary hardware and instructions for assembly.

Will this projector mount fitting for me? Please check the following detail:

1. Our universal extending ceiling projector mount fits the majority of projectors on the market. Check the mounting holes on the top of your projector and measure the distance between each hole. Your projector mounting hole must be between 8.85" -12.44”.
2. Please check the wood studs on your ceiling. This mount can also be used on concrete and brick ceiling. NOTE: does NOT support vaulted ceiling and drywall.
3. Please check the weight of your projector, the projector weight should be less than 66 lbs.

• Notice!!!
• The projector mount must be installed on a level ceiling or wall but not an arched one. If it is not installed correctly, it may fall and cause property damage or personal injury.
• This product contains small accessories. If accidentally swallowed, there is a danger of suffocation. Please keep these accessories away from children.

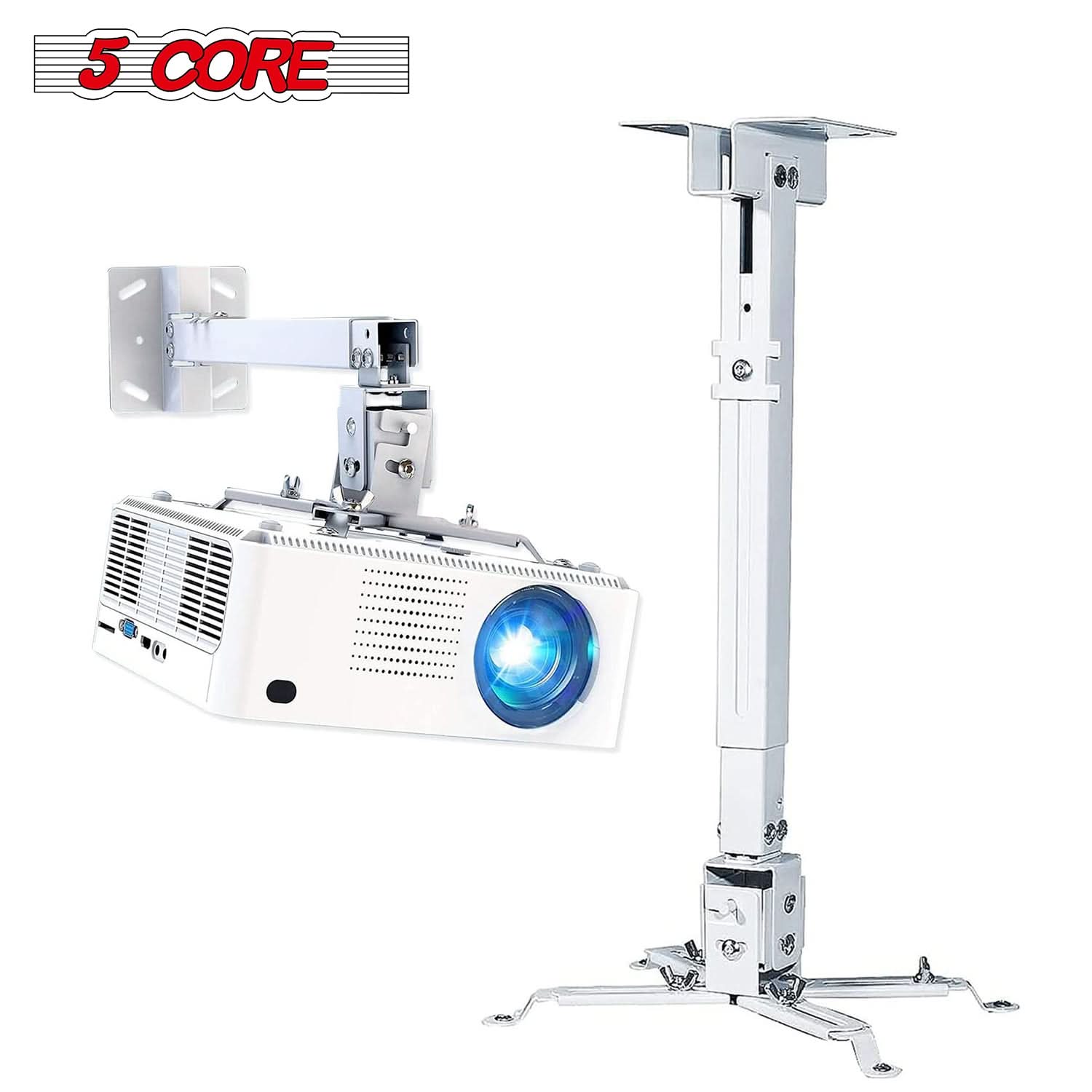

3-In-1 retractable projector mount, including Flush Ceiling Installation, Telescoping Arm Ceiling Installation, Wall Installation.

• PLEASE don't get overwhelmed by the number of parts. Pack list: Mounting Plate /Extension Arm /Bracket /Pan & Tilt Swivel/Expansion boltsx4 /M5x11 bolts/M4x4 bolts/M3x4 bolts/Small Platex2/Washerx4
• Except for the excluded accessories, please prepare the necessary tools, such as pliers, screwdriver, or drill, by yourself for a smooth installation.
• Detail Installation Guide:
• Step 1: Use the mounting plate with the expansion bolts to mark a position you want to install the projector.
• Step 2: Use the M5 screws to screw the mounting plate with the extension arm. The extension arm is stretchable, you can adjust it to a proper length by losing the screw on it.
• Step 3: Insert the Pan & tilt the swivel into the bracket and fixed them with M5 screws, tighten all the screws with your screwdriver.
• Step 4: Use the M5 screws to connect the extension arm with the bracket, align the holes, fix them with the M5 screws, and then tighten them with your screwdriver.

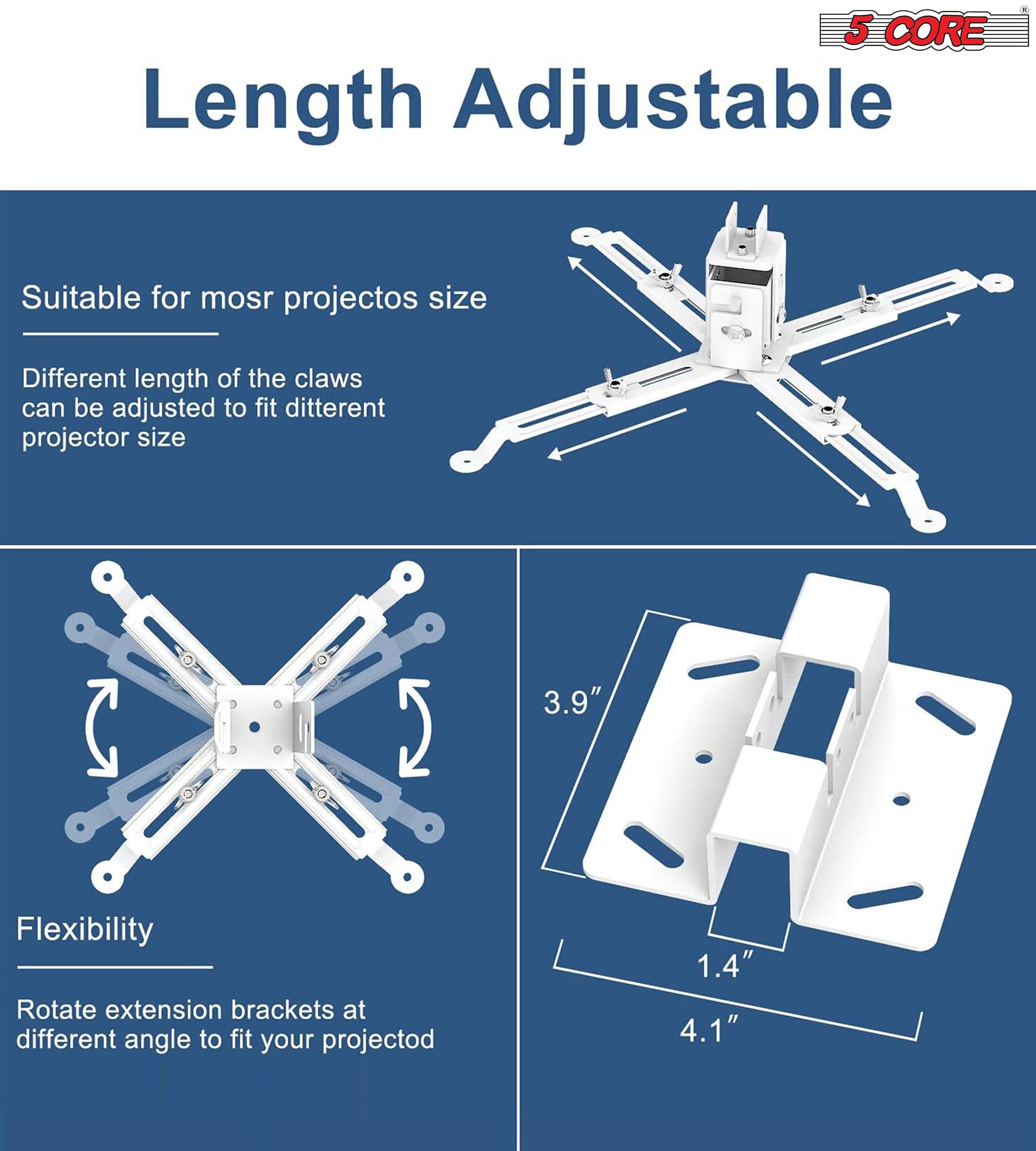

• Step 5: Connect the finished bracket with the projector. Needs to use M4 screws(Some projector fits the M3 screws) and the screw washer. The Bracket is expendable and stretchable, align the holes on the long plates with the mounting holes on the projector top to check if they fit each other. If the bracket doesn't fit the holes, you can use the 2 small plates to do the trick. (Lose the nuts on the long plates and took them out, use the M4 screw to fix the small plate according to the holes on the projector. Insert the small plate into the bracket, and screw the nuts a little bit). Adjust the angle of the bracket as needed, then insert another two screws into the projector. Tighten all the screws with your screwdriver, and then tighten the nuts.
• PS: Before fix the projector on the ceiling or wall, please take it with the mount to the ceiling or the wall, then power on the projector to check the best projection position. After selecting your ideal position, mark the holes with a pencil, then drill four holes in the ceiling or the wall based on the marks, and fix the projector with the expansion bolts.
• Finally, fix the mounting plate with the expansion bolts.
