DESCRIPTION
Wireless Microphone - Mic 600
Features:
- Special electronic circuitry for minimal noise distortion
- Compact electronic transmitter & receiver circuit for good frequency transmission
- Individual antennas for the VHF microphones to enhance their receiver to transmitter range.
- Separate volume controls for both the VHF microphones
- Mouth to Mic reception â?? 3-inch to 4-inch
- Specially designed receiver compatible with high-quality pure quartz crystal
- Easy installation & low power consumption
- 12-volt adapter to power the receiver
- P38-P38 cable to attach receiver with amplifier
- On/Off/Mute function for easy handling of Microphones
- 9-volt Lithium batteries operated, Unidirectional Microphones, VHF compatible for appropriate professional work, 50m range from the receiver
Technical Specifications:
|
No. of Microphone
|
Two Wireless Handheld Microphone
|
|
Frequency Range
|
VHF210-270MHz, Quartz Frequency Lock
|
|
Frequency Stability
|
±0.05%
|
|
Modulation Deviation
|
50KHz
|
|
Audio Frequency Response
|
40Hz-15KHz
|
|
S/N Ratio
|
>90dB
|
|
T.H.D
|
0.5%(1KHz)
|
|
Audio Output
|
0-0.5V
|
|
System Distortion
|
1.0%
|
|
Operating Range in radius
|
30-50 m
|
|
Operating Temperature Range
|
-10~C
|
|
Scope of application
|
Concert, KTV, school, hall, family, party
|
|
Power
|
9V for mic,AC220V for receiver
|

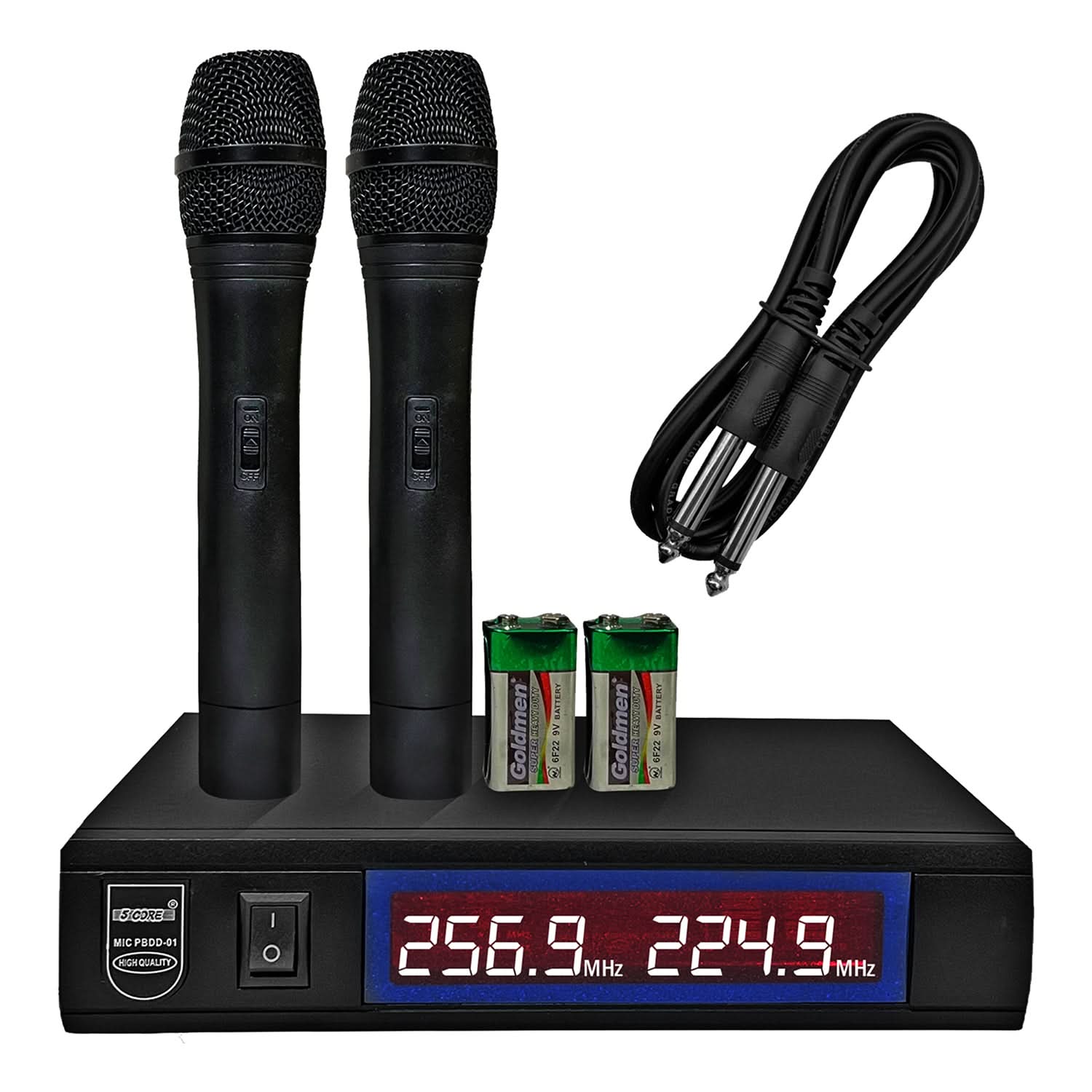

Technical Specifications WM PBDD 01
- No. of Microphone - Two Wireless Handheld Microphone
- Frequency Range - VHF210-270MHz, Quartz Frequency Lock
- Frequency Stability - ±0.05%
- Modulation Deviation - 50KHz
- Audio Frequency Response - 40Hz-15KHz
- S/N Ratio - >80dB
- T.H.D - 0.5%(1KHz)
- Audio Output - 0-0.5V
- System Distortion - 1.0%
- Operating Range - 20-30 m
- Operating Temperature Range -( -10~C)
- Scope of application -Concert, KTV, school, hall, family, party
- Power - 9V for mic,AC220V for receiver
Technical Specifications WM 67S & WM 33e
|
No. of Microphone
|
Two Wireless Handheld Microphone
|
|
Frequency range
|
717-770MHz
|
|
Frequency Stability
|
±0.007%
|
|
T.H.D
|
0.5%
|
|
Frequency response
|
40Hz-18KHz
|
|
Output plug
|
1/4 : 0~200mV
|
|
XLR
|
0~200mV
|
|
Cover range
|
30-60m
|
|
Operation temperature
|
-10
|
|
Receiver
|
|
Rated power
|
3W
|
|
S/N
|
100dB(1KHz-A)
|
|
R F sensitivity
|
-90dBm
|
|
Channel quantity
|
Dual Channel
|
|
Transmitter:
|
|
Transmitter power
|
10mW
|
|
Modulation mode
|
FM
|
|
Maximum deviation
|
±50KHz
|
|
Power
|
1.5V*2
|
|
Battery life
|
8 hours
|
Package Includes : 2 Pieces Wireless Mic , Receiver , Adapter , 2 Battery
USP:
Premium quality Metal bawl for professional look
High-output neodymium magnet in cartridge module
We have the largest range of wireless microphones
Heavy-weight housing with anti-skid feet ensures stability
Acoustically designed to match with 5CORE® Mixers, Amplifier and speakers.
|
